Solar Panel

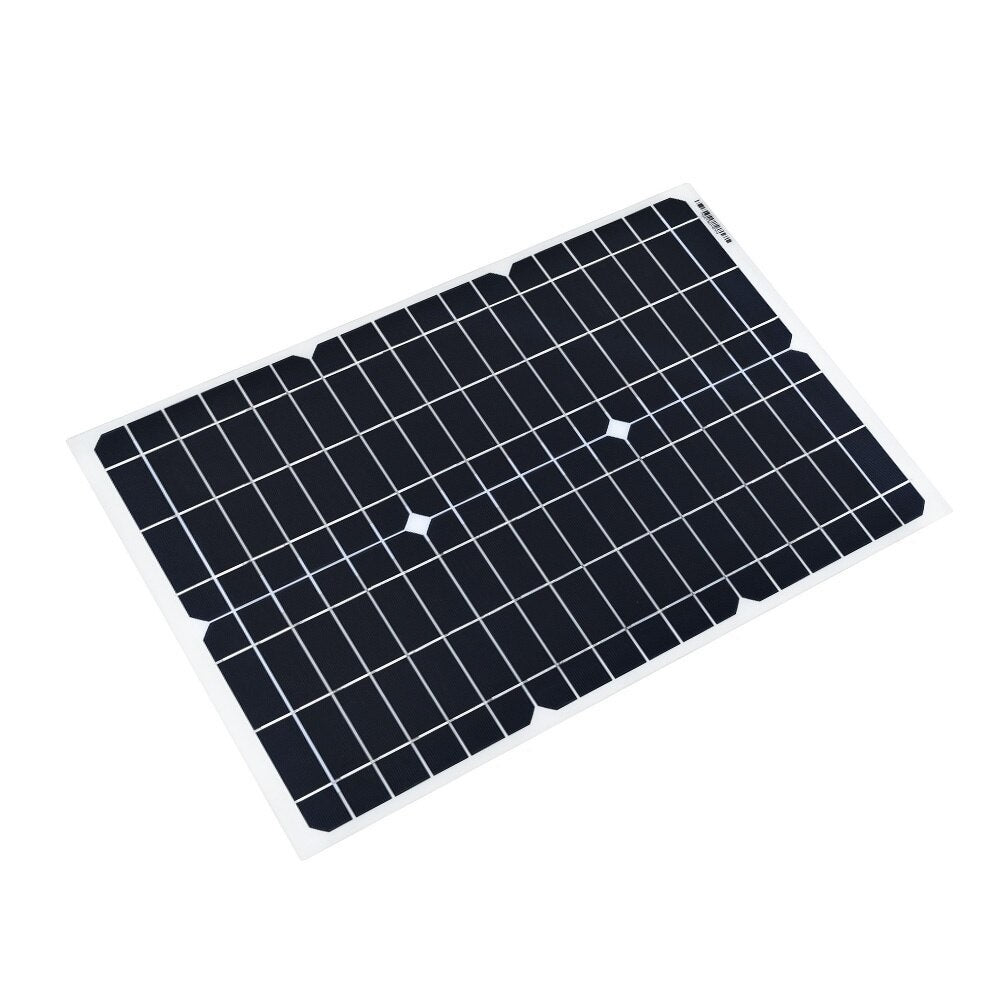

18V 30W Monocrystalline Solar Panel with Solar Charge Controller

Enhance your outdoor power solutions with the 18V 30W Monocrystalline Solar Panel, designed for versatility and efficiency. This lightweight, semi-flexible panel is ideal for various applications including cars, trucks, motorcycles, boats, RVs, camping, and hiking.

Key Features:

• Semi-Flexible Design: Bends up to 20 degrees, making it easy to install on curved surfaces like yacht or RV roofs.

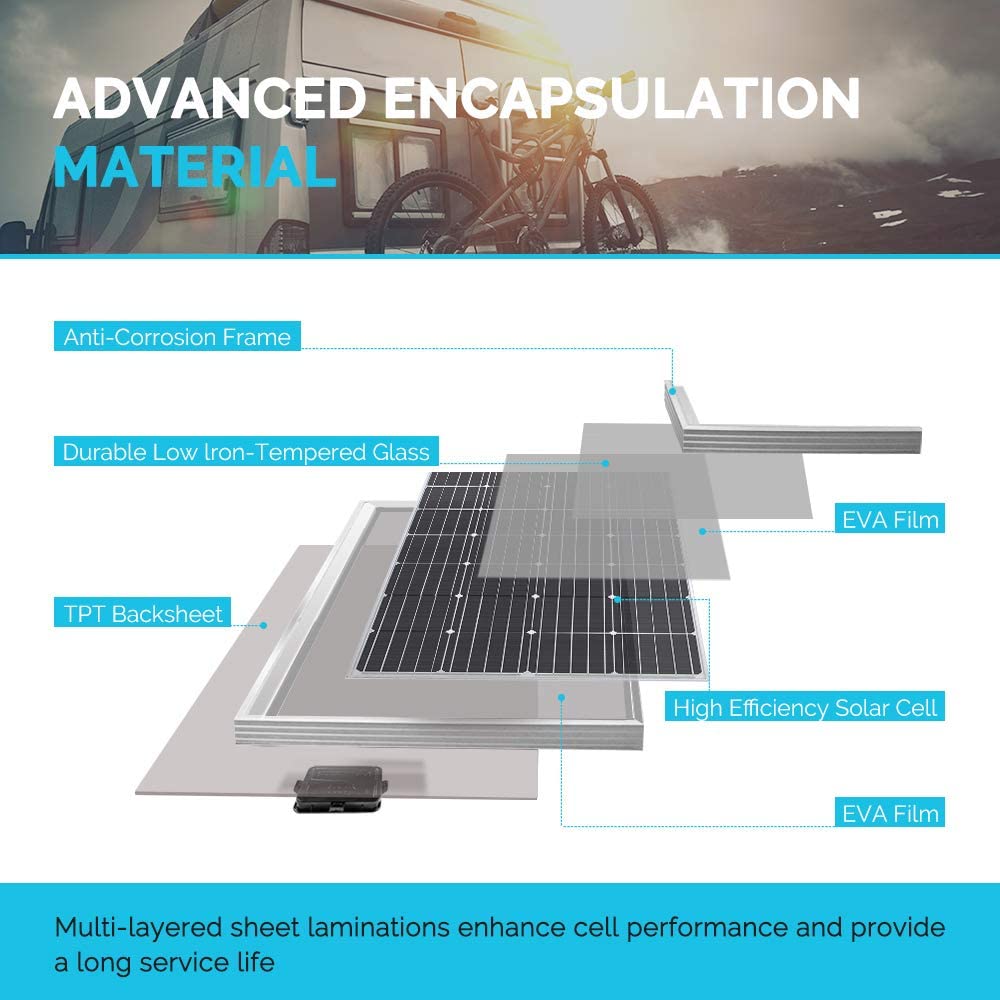

• Durable Construction: TPT backsheet and hardened surface prevent scratches, suitable for outdoor use.
• High Efficiency: Monocrystalline silicon delivers up to 19.5% efficiency, ensuring steady power generation.
• Compact and Lightweight: Thin at only 3mm and weighs just 0.58 KG, easy to carry and install.
• Wide Applications: Perfect for golf carts, yachts, caravans, and more, providing reliable power generation wherever needed.
• Easy Installation: Can be installed with adhesive, screws, or grommets, suitable for various mounting methods.

Specifications:

• Maximum Power (Pmax): 30W
• Output Tolerance: +3%
• Maximum System Voltage: 700V
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (Isc): 1.82A
• Maximum Power Voltage (Vmp): 18V
• Maximum Power Current (Imp): 1.66A
• Cell Efficiency: 19.5%
• Operating Temperature (NOCT): 45±2°C
• Temperature Range: -20°C to +80°C
• Number of Cells: 36
• Size: 510mm x 330mm x 3mm
• Weight: 0.58 KG
• Standard Test Conditions: Irradiance 1000w/m2, Temperature 25°C, AM=1.5

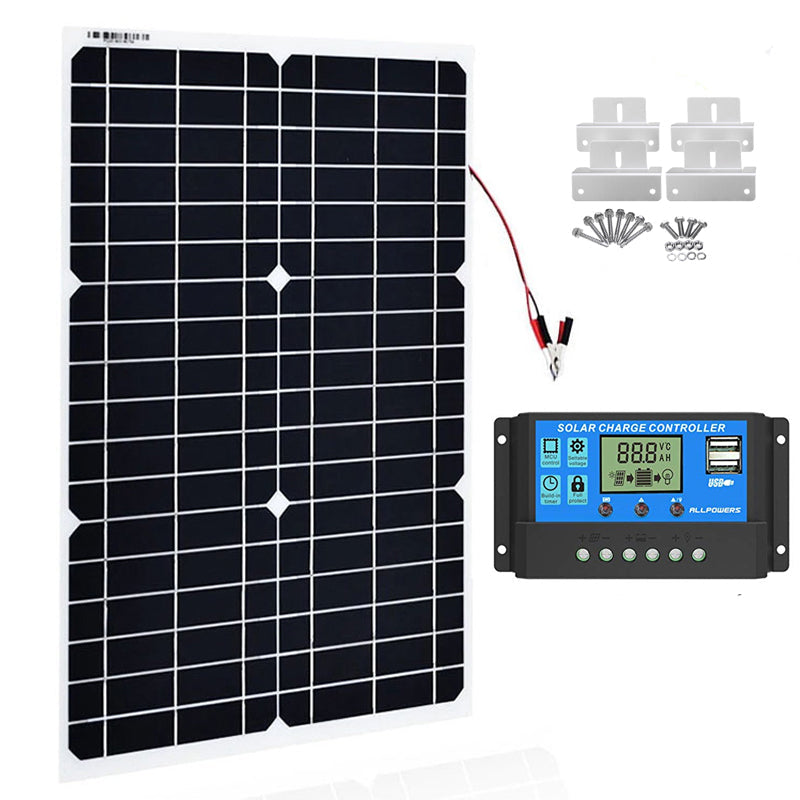

Packaging Contents:

• 1 x 18V 30W Monocrystalline Solar Panel
• 1 x 20A Solar Charge Controller
• 1 x Solar Mount

Note: Ensure proper positioning and setup for optimal solar energy conversion. Ideal for off-grid and portable power solutions.
